• Model:KABB

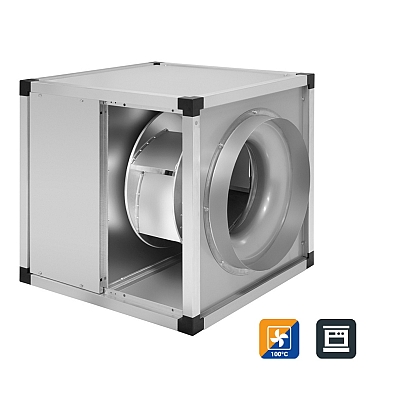

Acoustic High temperature kitchen fan (Single Phase) KABB

£ 1,089.00 (excl. VAT)

£ 1,306.80 (inc. VAT)

KABB High temperature single kitchen fan - IP55
Cabinet fans manufactured from galvanised steel sheet with double thickness side panels internally lined with 25 mm thickness of fireproof fibreglass acoustic insulation (M0). Circular duct connection flange on the inlet. KABB / KABT incorporates direct driven aluminium backward curved centrifugal impeller with motor fitted outside of the air stream.
Outlet can be configured as out of either side.
Supplied with galvanized drip tray and copper drain.
Working temperature from -20ºC to 100ºC
Backward curvedcentrifugal impellers to prevent accumulation of dirt. Dynamically balanced.
Outdoor cover available for outdoor mounting.
Speed controllable via transformer.
Sizes offered here are single phase, 4 pole.

KABB/4-3000/315.. 315mm ducting - max airflow 2460 m3/hr
KABB/4-4000/355.. 355mm ducting - max airflow 3790 m3/hr
KABB/4-6000/450.. 450mm ducting - max airflow 5900 m3/hr


PDF Files


KABB/KABT Series

Available Options
