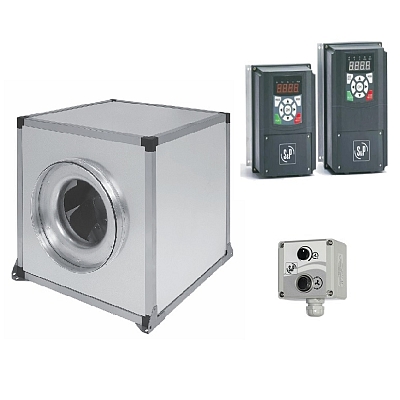

CVAT Acoustic Kitchen Fan & Inverter Kit - CVAT/4-4000/400 ND - Pack 4

This Model is the PACK 4 version, CVAT/4-4000/400 ND with the VFD-M-10A

Just released, this new kitchen fan package for 240V single phase installations.
Includes a 3 phase fan along with a matching inverter speed controller so it runs on 240V whilst enjoying the advantages of three phase (400V) fans, efficiency, reliability and controllability.
Fully BMS and 0-10V compatible.
Much better solution than using single phase fans and the control and reliability issues that arise from their use compared to three phase motors.

TECHNICAL SPECIFICATIONS.
Max Airflow: 3,850 m3/hr
Airflow/pressure (m3/s @ Pa): 0.86 @ 250pa
Absorbed Power: 438w
Max Current: 1.6 Amps
Sound Pressure Level: 43 (DB(A))
Fan Unit Weight: 32Kgs

Optional extras: (please select in the drop down boxes above)

**Remote 0-10V speed control. (REB-CVF)**
To allow for simple control in the cooking area.

**Outdoor Weather Cover**
To allow the fan to be mounted outside.

Now comes with a THREE YEAR WARRANTY
See You-tube video HERE
