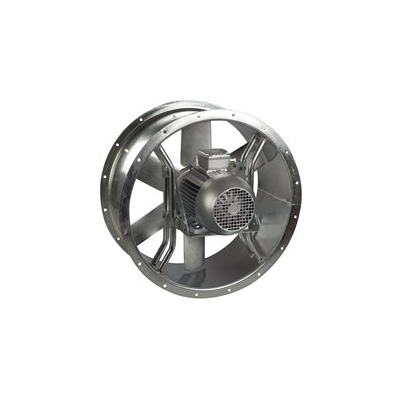

Range of adjustable pitch aerofoil blade, cased axial flow fans designed for smoke extract in fire conditions. Casings formed from rolled sheet steel with a corrosion resistant hot dipped galvanised finish for all models.Suitable for horizontal or vertical mounting installation. F300 (CE marked)motors are IP55, class H insulation, suitable for inverter control. Long casing versions with large inspection door fitted (that enables access to the motor terminal box for electrical connection) and terminal box. In emergency operation, no need for DOL or de-rating, as long as the VFTM range of VSDs is used, and/or requirements defined in EN 12101-3 are followed. Brand S&P model THGT/2-560-6/18 BLPK 5,5kW (400V50Hz) F300/F200 IE3 V5 for an airflow 14.869 m³/h and static pressure 564 Pa.
SolerPalau Sistemas de Ventilación SLU certifies that this model is licensed to bear the AMCA Seal for Air Performance. The ratings shown are based on test and procedures performed in accordance with AMCA Publication 211 and comply with the requirement of the AMCA Certified Ratings Program.
Performance certified is for installation type D; ducted inlet, ducted outlet, without the effect of appurtenances. The AMCA Certified Ratings Seal applies to air performance ratings only. Power rating excludes transmission losses.
The revision version is EasyVent v11, May 2020. Certification may be checked at AMCA
G52566055U43 - THGT/2-560-6/18 BLPK 5,5kW (400V50Hz) F300/F200 IE3 V5
