• Model:AWSil-EX550D6

AW 550 D6-2-EX Explosion Proof Axial Fan - ATEX

£ 1,500.45 (excl. VAT)

£ 1,800.54 (inc. VAT)

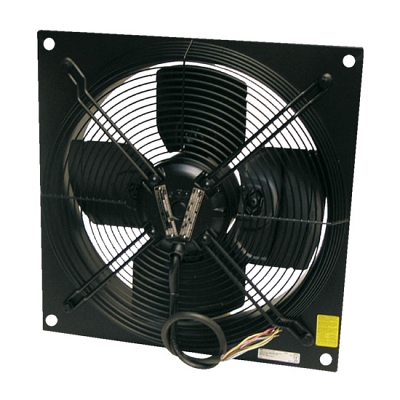

AW 550 D6-2-EX Explosion Proof Axial Fan - ATEX

The AW - EX fans have speed controllable external rotor motors. The fans have a square plate for wall mounting and are painted in standard black. The casing and impeller is manufactured from sheet steel. To protect the motor from overheating, integral thermistors are fitted with external leads which must be connected to the U-EK230E motor protection relay.

• Certified according to ATEX
• Speed-controllable
• Integral thermal contact
• Explosion proof
The AW-Ex fan motor is approved according to ATEX. Useful for Zone 1 and 2; temperature class T1, T2, or T3. Ignition protection "e".

Technical parameters
Nominal data
Voltage (Nominal) 400 V
Frequency 50 Hz
Phase(s) 3~
Input power 579 W
Input current 1.15 A
Impeller speed 697 r.p.m.
Air flow max 1.841 m³/s
Temperature of transported air max 40 °C
Max temperature of transported air, when speed controlled 40 °C

Sound Data
Sound pressure level at 3m (20m² Sabin) 67 dB(A)

Protection/Classification
Enclosure class, motor IP44
Insulation class F
Explosion proof marking II 2G c Ex e IIB T3
Certificate ZELM 05ATEX0279X

Data according to ErP
ErP ready Not ErP relevant
Controller and Sensors
Ambient and duct temperature -20 to 40 °C

Dimensions and weights
Weight 14.5 kg

Others
Motor type AC

PDF Files


AW 550 D6-2-EX Axial fan ATEX Specification Sheets
