• Model:HAP

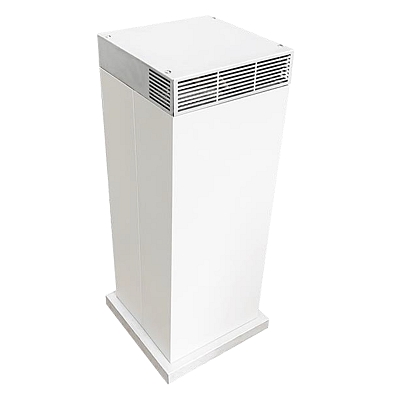

H14 True Hepa Commercial Air Purifier

£ 1,663.94 (excl. VAT)

£ 1,996.73 (inc. VAT)

H14 Hepa Commercial Air Purifier / Air Cleaner incorporating 3 stage filtration for cleaning the air in indoor environments. Made in the UK.
These are commercial units with easily sourced replacement filters, manufactured by a specialist local company. They also have the ability to integrate (with optional extras) with existing air-con systems if needed. (see images)
It consists of a coarse pre-filter + a medical grade H14 Hepa filter + Activated Carbon filter.
Suitable for Shops, Offices, Pubs, Restaurants, Waiting Rooms, Surgeries, Dentists, Gyms and Homes.

True Hepa air purifiers capture up to 99.97% of particles as small as 0.3 microns, whereas a purifier with a normal Hepa Type filter is only capable of capturing 99 percent of particles that are 2 microns or larger. Not all Hepa filters are equal!
Hepa H14 filters are the highest grade and pass only 0.005% of 0.1 micron particles per litre of air and are therefore considered medical grade.

The Airclean Commercial Hepa Air Purifier, and the Airclean Fan + Filter Systems offers a simple, retrofittable solution.

• Removes Fine particulates including viruses down to 0.1 microns with a leak tested True H14 Hepa Filter to EN 1822
• Removes Coarse Particulates using a 65% Coarse Panel Air Filter to ISO 16890
• Removes Odours, VOCs and pollutant gases with a deep bed activated carbon filter
• Powerful fans operate up to 500m3/hr (HAP500) and 700m3/hr (HAP675).
• The air purifier / air cleaner can be ducted for use in medical isolation rooms
• The Air Purifier can also be ducted and combined with fan coil vent systems in offices to improve filtration
• All Filters, and the Air Purifier are Manufactured in Kent, UK by a company with over 30 years experience in the industry.

The H14 Commercial Hepa Air Purifier / Air Cleaner will clean air in indoor environments by the removal of ultra-fine particulates, odours, VOCs and Pollutant gases. The H14 Hepa Filter used in the Air Purifier is a True and individually Tested H14 Hepa offering filtration down to 0.1 micron particulates.
The deep bed Activated Carbon Filter offers a long contact time maximising its capability and life for the removal of odours, VOCs, and pollutant gases including Nitrogen Dioxide.

Applications
The Airclean Hepa Air Purifier is designed to clean air in indoor environments by the removal of fine particulates, odours, VOCs and Pollutant gases such as Nitrogen Dioxide, by drawing it through the highest efficiency air filters.

1. Air Purifier / Cleaner
The Commercial Hepa Air Purifier will improve air quality, and reduce infection transmission in any scenario, independent of existing heating and cooling systems, by recirculating and cleaning the air.
2. Negative Pressure Infection Control
By adding a duct outlet to the top of the Hepa Air Purifier, the unit can be set up to discharge through a wall, or window creating a negative pressure. This function can be used in hospitals or care homes to prevent infection spread, whilst ensuring the discharged air is safe.
3. Fan Coil Ventilation Systems
The Hepa Air Purifier can be mounted in a room and ducted to supply fresh clean air to the back of existing fan coil air conditioning. The fan in the Air Purifier allows the system to be balanced, allowing existing fan coil fans, to handle the strain.

Technical
The Hepa Air Purifier includes a 2-speed switch giving users access to a trickle and boost setting. The two speeds are pre-set when supplied, and can be fully adjusted by two discreet dials located in the base of the unit, to allow for fine control as required. The unit is constructed from a combination of plastic-coated steel, and powder coated steel, which is hygienic and cleanable as required.
The commercial Hepa Air Purifiers come as standard with white label branding. The unit does offer available space for corporate branding if needed, or an awareness campaign as required.

Power: 80 Watts, Single Phase, 240V, 1 amp (HAP500) / 160 Watts, Single Phase, 240V, 2 amp (HAP675)
Noise: 40 to 60 dBA ( 5-100% Speed Setting (HAP500) )
Duty: 500m3/hr (HAP500), 675m3/hr (HAP675)
Dimensions: 425W x 425H x 1000Hmm (HAP500) - 450W x 700H x 1000Hmm (HAP675)
Room Area: HAP500 is effective up to 500m3/h for indoor spaces (2.5m high) of up to 75m2. (@3 room exchanges/hr)
HAP675 is effective up to 675m3/h for indoor spaces (2.5m high) of up to 100m2. (@3 room exchanges/hr)

Coarse 65% Pleated Panel Filters (Anticipated Change Rate – 6 Months Maximum)
The first filter in the Hepa Air Purifier is designed to remove large particulates including PM10 and PM2.5 and acts to pre filter air prior to entering the unit. This filter meets ISO16890 to Coarse 65%

Activated Carbon Filter – (Anticipated Change Rate – 1 Year Maximum)
The Activated Carbon Filter contains Virgin Activated Carbon attaining a contact time long enough to remove odours, VOCs, and pollutant gases. This filter has one of the deepest carbon beds available in an air purifier, guaranteeing maximum removal efficiency and life.

H14 Hepa Filter - (Anticipated Change Rate – 1 Year Maximum)
The Airclean Commercial Hepa Filter is individually DOP Scan Tested to meet EN1822. Filters are highly efficient remove particulates down to 0.1 micron and tested to be 99.997% efficient at 0.3 microns. Our unique mounting system ensures that air will not bypass the Hepa.

Available Options
