This is the TIMER model

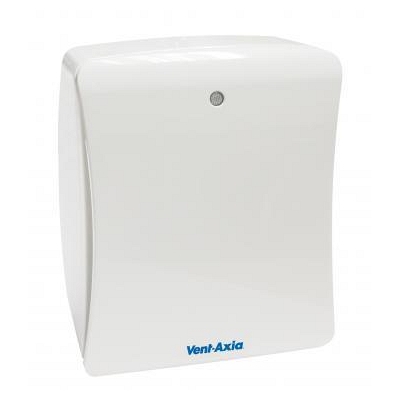

The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, WCs and other small rooms.
Finished in white, the Solo Plus can be flush or surface mounted, with a 2-position 100mm circular spigot for rear entry or connecting to a vertical ducting system. The powerful centrifugal forward curved impeller allows installations using 100mm ducting, whilst still achieving 15l/s as required by Document F of the current building regulations.
The new Solo Plus has a choice of two boost/override motor speeds, medium (17l/s) or high (25l/s), with an optional third speed for constant trickle ventilation (10l/s), selectable at installation. Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/light switch/humidity sensor/PIR.
Four models are available offering features such as, Pullcord, Timer, Humidistat/Timer or PIR versions. All models can be wall; panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axias System 25 flat ducting, which has been specially designed for concealed applications that can benefit from its ultra slim 25mm depth.
Cable entry is achieved through a rear entry grommet on the top right hand side of the unit. Enclosure of the electrical components is manufactured from flame retardant grade material.
Supply voltage 220-240V/1/50Hz.
Motor
Incorporated into the Solo Plus is a highly efficient ball bearing capacitor run motor. Capacitor run motors offers the benefit of being over 50% more efficient than conventional shaded pole motors within its class. The fully enclosed motor is fixed onto a 3 position anti-vibration mount which offers higher reliability and lower noise.
