• Model:UB41

UB41 Universal Tile Vent

£ 47.19 (excl. VAT)

£ 56.63 (inc. VAT)

Ubbink Universal Tile Vents -UB41

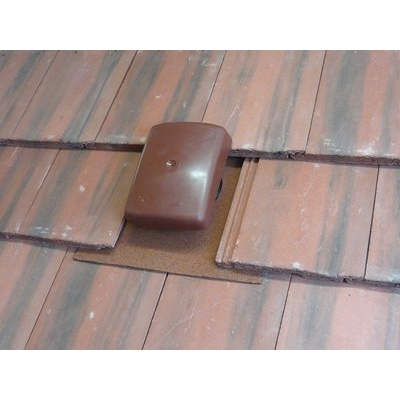

Ubbink's universal roof vent is suitable in most tiled and slated pitched roofs without the need to identify the make or design of the tiles and slates.

UB41's comprise of a hood on a circular upstand (160mm dia) with a 500mm x 500mm Ubiflex flashing skirt and stepped adaptor which allows connections to 100/110/125/150/160mm diameter ducting.

The unit may also be used to terminate soil & vent pipes where an external pressure test is not required.

UB41 Hooded Tile Terminal Universal Product features and benefits:
20,000mm² large free vent area.
Large diameter spigot c/w Adaptor to accept ducting of 100/110/125/150/160mm.
Application: Mechanical extraction.
Minimum pitch of 22.5°.
Material: PVC-U and Ubiflex.
Colours:
*Red/terracotta skirt.
*Terracotta/terracotta skirt.
*Anthracite /black skirt.
*Sepia/black skirt.
Dimensions: 500mm x 500mm skirt. - Stepped Adaptor: 215mm.
Weight 1.53kg.

Product Code:
Red-100130172069.
Terracotta-100130172067.
Anthracite-100130172063.
Sepia-100130172066.
PDF Files


UB41 Data Sheet
