• Model:CRMT/4

CRMT -High Temp Centrifugal Single Inlet Fans

£ 689.00 (excl. VAT)

£ 826.80 (inc. VAT)

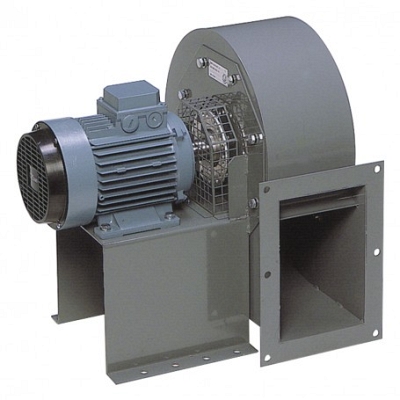

CENTRIFUGAL SINGLE INLET FANS - CRMT Series

Range of single inlet direct drive centrifugal fans designed for smoke extraction in fire conditions and certified F400-120 (CE marked) and suitable for the continuous extraction of air stream up to 300ᄎC. All casings are manufactured from electro-welded sheet steel protected against corrosion by grey epoxy-polyester paint coating. All models incorporate forward curved centrifugal impellers manufactured from galvanised sheet steel.
Available, depending upon the model, with single or three phase motors in 4 or 6 poles.

Motors
All motors are IP55, class F.
Electrical supply:
-Three phase 230/400V-50Hz up to 3kW. -Three phase 400V-50Hz, for higher power motors. (See characteristics chart).

Additional Information
The scroll can be orientated in 8 different positions as per the table below.
Standard supplied position: LG 270.

On request
LARGER SIZES UPTO 500mm
Fan supplied in RD position.
Fan fitted with 2-speed motor.
PDF Files


CRMT Range
