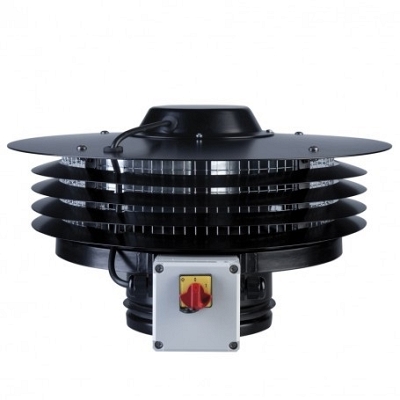

CTB Series -Roof Mounted Fan
Our Price: £379.00
£454.80 inc. VAT
Range of centrifugal roof fans which are
mounted directly above a circular duct
for the ventilation of housings and small
Centrifugal backward curved impeller in
galvanised sheet steel.
Galvanised steel sheet housing protected
by black epoxy polyester paint.
All models are fitted with bird proof guard.
4 different sizes for diameter ducts 160,
200, 250 and 315 mm.
ON-OFF switch IP55.
Duct connection flange with integrated
rubber air seal.
Manual resetting thermal protector 155ºC.
All motors are IP55, Class F, direct drive.
Single phase motor 230V 50Hz.
Working temperature: -40ºC/+70ºC
